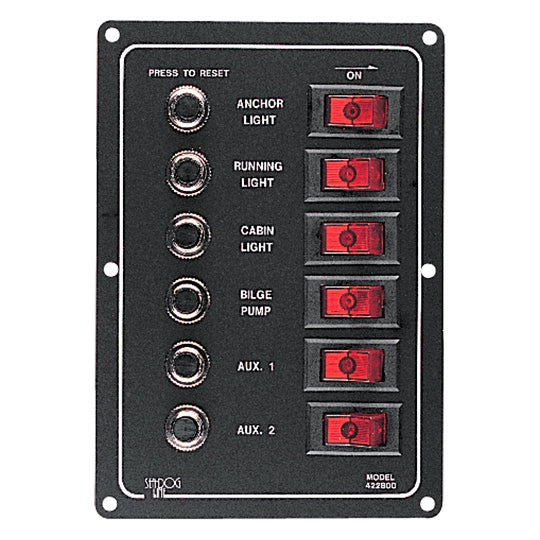

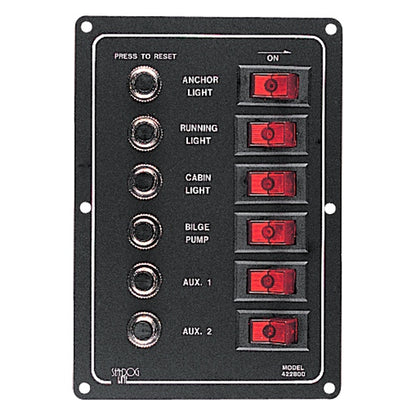

Sea Dog Aluminum Breaker Panel

Illuminating Switches
Supplied with: 2-3 Amp, 2-6 Amp, 1-8 Amp and 1-10 Amp Thermal AC/DC Circuit Breakers.
Additional size available.
See Sea-Dog Theermal AC/DC Circuit Breakers: 420804-420810.
Panel rating: 12V, 40 amps total. Individual circuit 10 amps maximum.

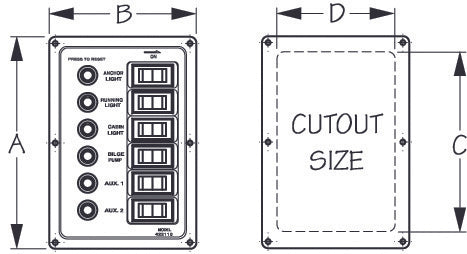

• A = 6-1/2"
• B = 4-1/2"
• C = 5-1/2"
• D = 3-1/2"
