KFI PRODUCTS Rocker Switch for Winch

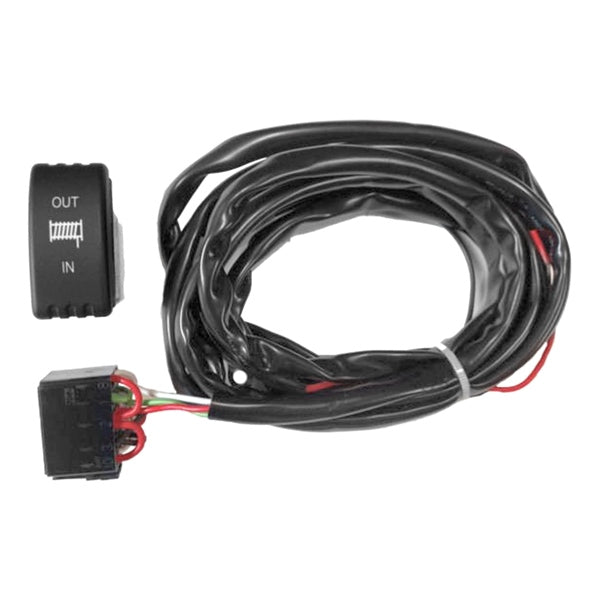

Kit Includes:

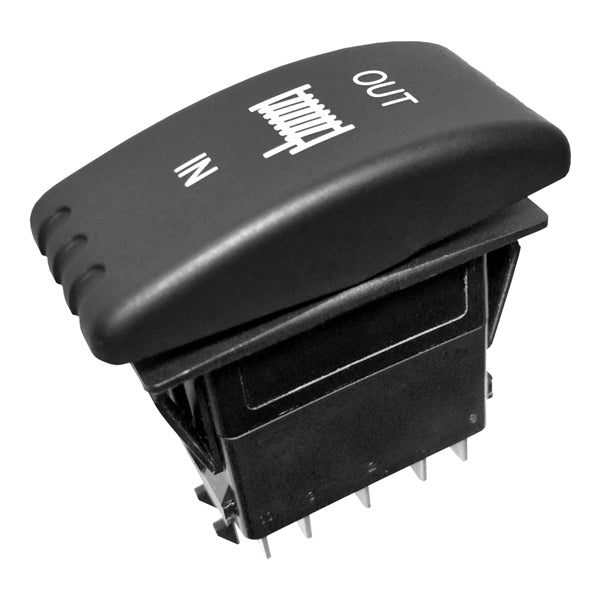

• Rocker Switch to control your electric winch.
• Complete Wire Harness with Plug

• Easy wiring installation.
• Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor.
• Blue LED illuminated when your key is turned on to allow you to see at night.
• Circuit Type (ON)-OFF-(ON).
• Double pole switch. This mean two contact points instead of just one for better repeatability operation.
• Requires mounting hole 0.830” x 1.450”. (Standard on most UTV’s)
• Works with panel thickness ranging from .030” to .250” thick.
• Max current rating: 20A 12VDC and 15A 24VDC.
• Silver plated terminals.
• Requires standard ATV winch contactor to control winch.
• See below wiring schematic.
